SN74HC4066DBR
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74HC4066DBR
Datasheet:
Description:

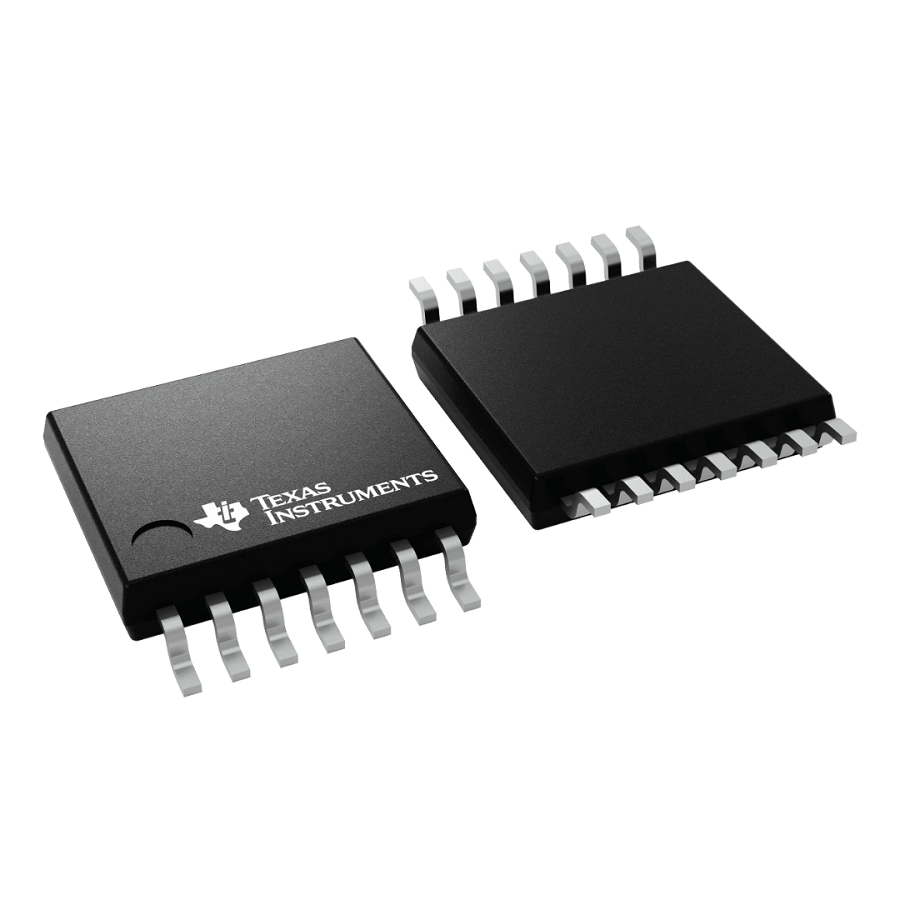

Analogue Switch ICs SSOP-14 SMD/SMT Number of Channels:4 85 Ω 38 ns 43 ns
| Parameter | Value |
|---|---|
| Length | 6.2 mm |
| Width | 5.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Resistance | 30 Ω |
| Height | 2 mm |
| Packaging | Reel |
| Thickness | 1.95 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Circuits | 4 |
| Bandwidth | 30 MHz |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Active |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2 V |
| Number of Channels | 4 |
| Number of Bits | 4 |
| Turn-On Delay Time | 38 ns |
| Turn-Off Delay Time | 43 ns |
| Operating Supply Current | 2 µA |
| -3db Bandwidth | 30 MHz |
| Propagation Delay | 15 ns |
| Max Supply Current | 2 µA |
| High Level Output Current | |
| Low Level Output Current | |
| Number of Inputs | 4 |
| Supply Type | Single |
| Throw Configuration | SPST |
| Number of Outputs | 4 |
| On Resistance (RON) | 85 Ω |
| Logic Family | |
| Configuration | 4 x SPST |
Stock: 1445
Distributors
pcbx
pcbxUnit Price$0.77627
Ext.Price$0.77627
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.77627 | $0.77627 |
| 10 | $0.47534 | $4.75340 |
| 25 | $0.40010 | $10.00250 |
| 50 | $0.34797 | $17.39850 |
| 100 | $0.30264 | $30.26400 |
| 300 | $0.26661 | $79.98300 |
| 500 | $0.23487 | $117.43500 |
| 1000 | $0.20690 | $206.90000 |
| 3000 | $0.18500 | $555.00000 |
| 5000 | $0.16541 | $827.05000 |
| 10000 | $0.14790 | $1479.00000 |
